Truss system disc-type gripping unit
TG25-FZ42
Configuration options:
Flexible compensation units:ZG25
Three-finger jaws mounted as standard:TZ42-76-0°
Three-finger gripper claw finger cylinder flip:TZ42-76-180°
3D model

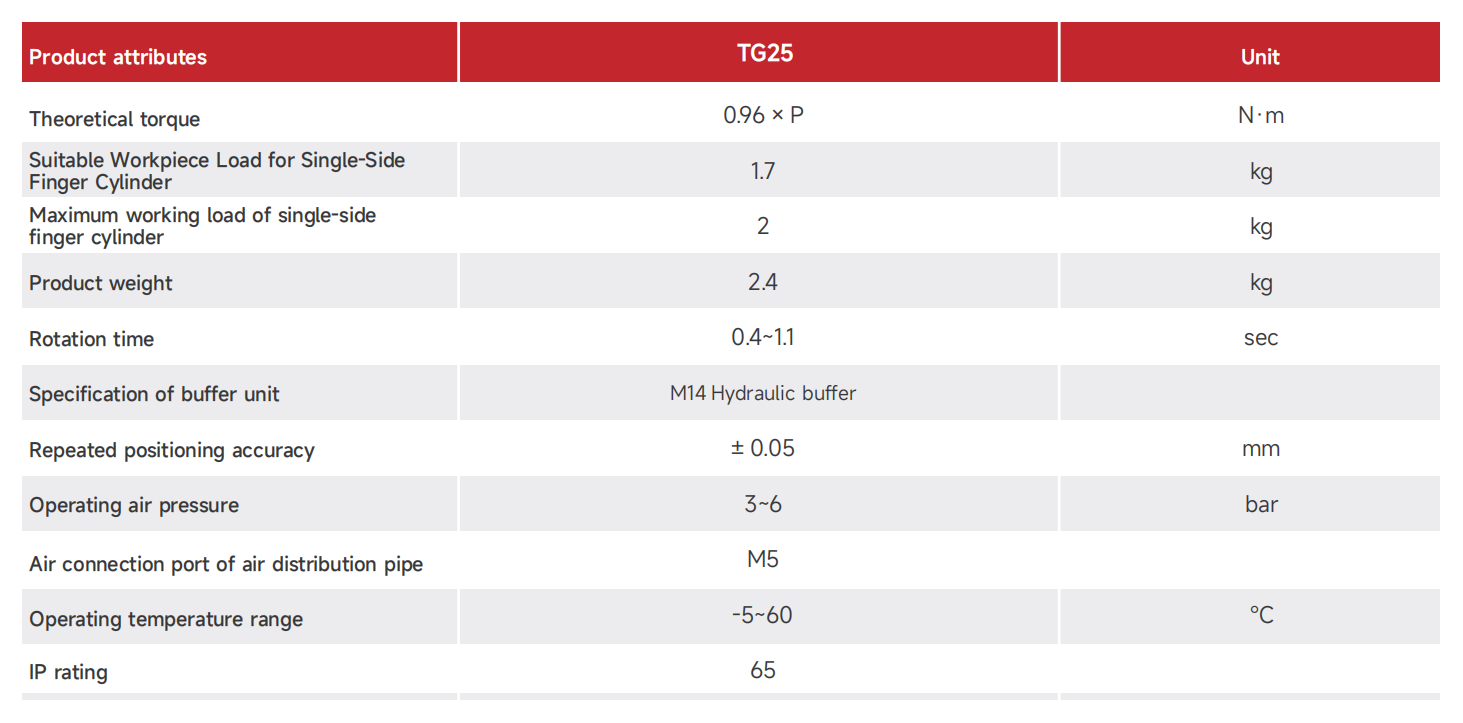

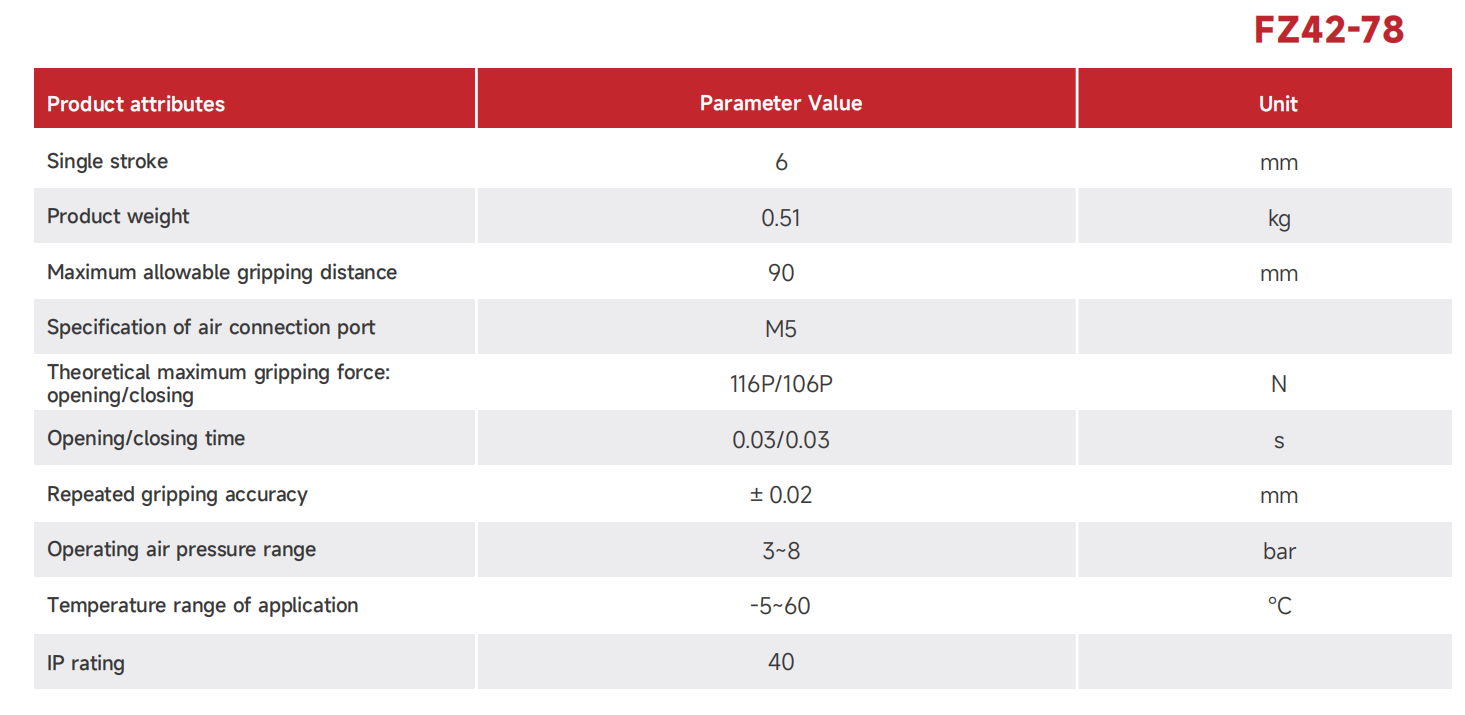

Product Parameters

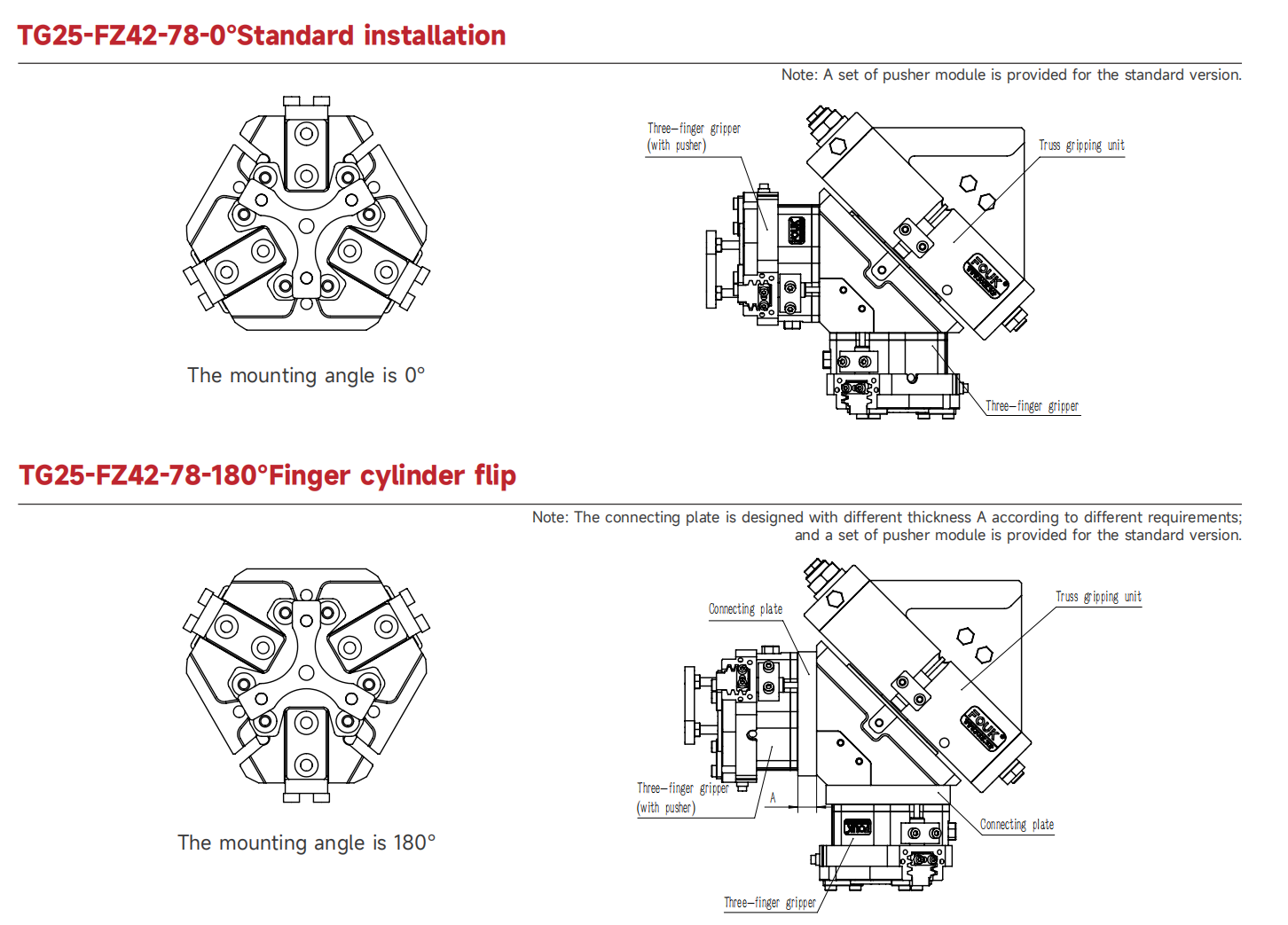

engineering graphics
