Truss system disc-type gripping unit
TG50-FZ90

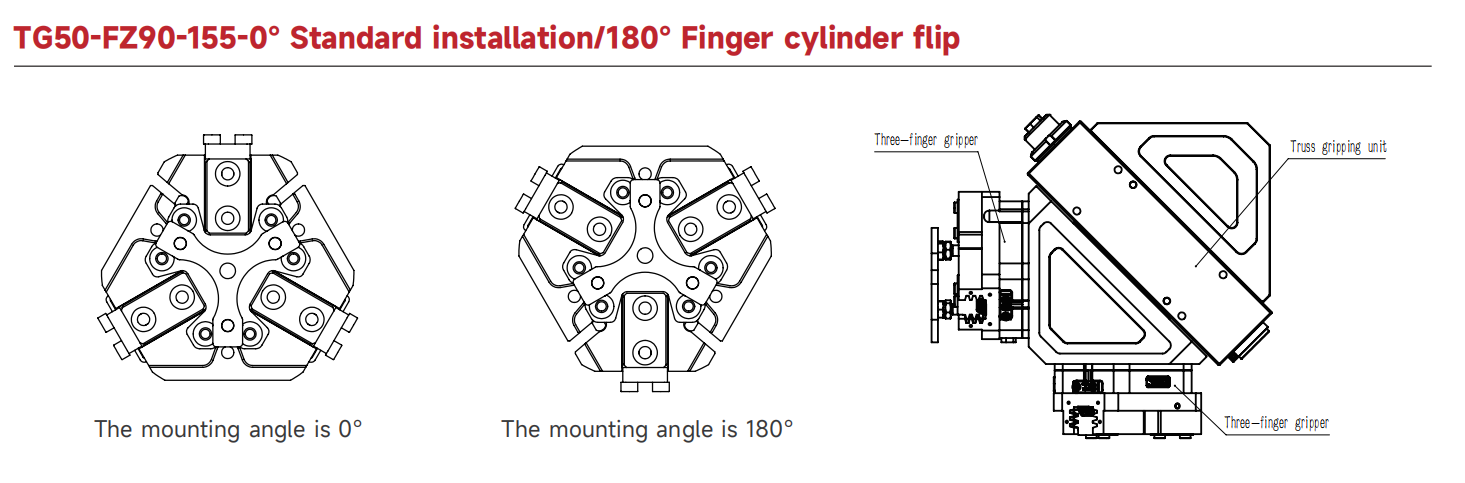

Configuration options:
Three-finger jaws mounted as standard:TZ95-146-0°
Three-finger gripper claw finger cylinder flip:TZ95-146-180°
3D model

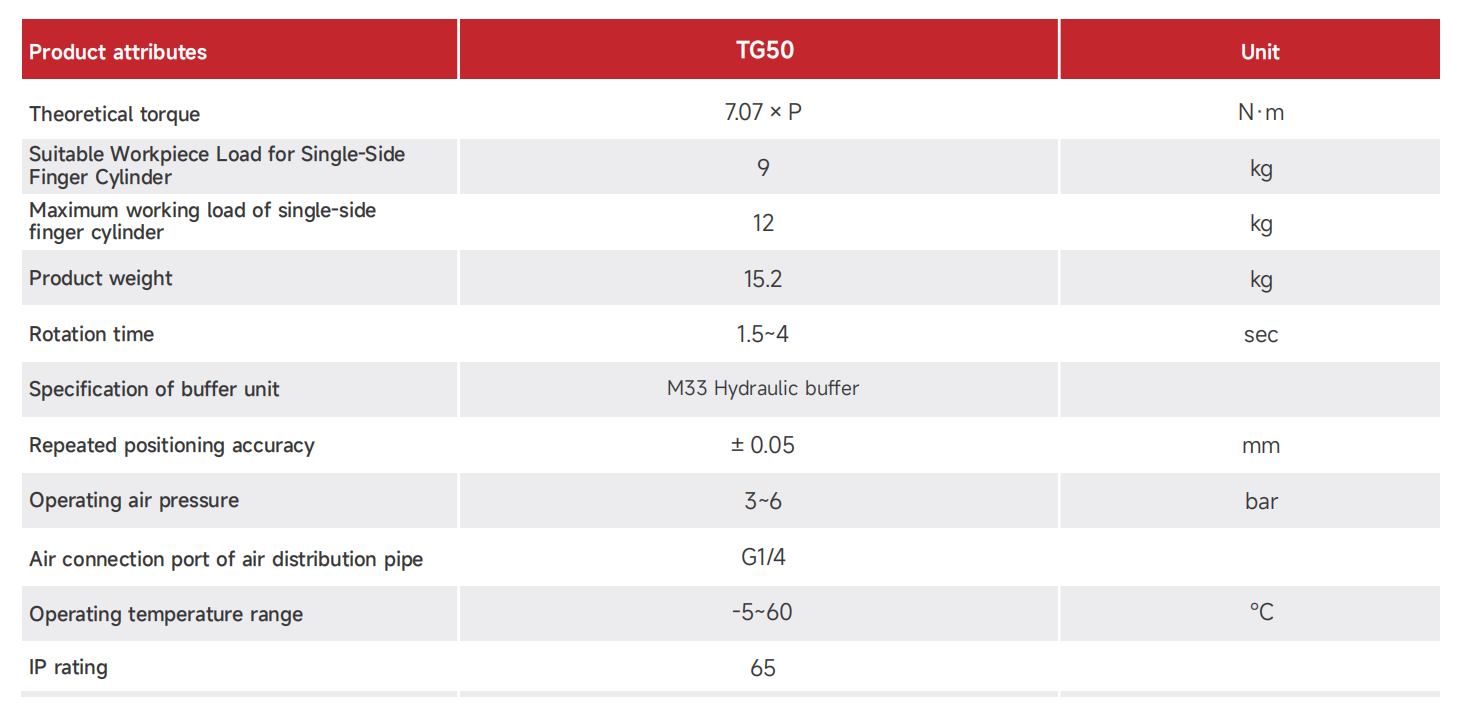

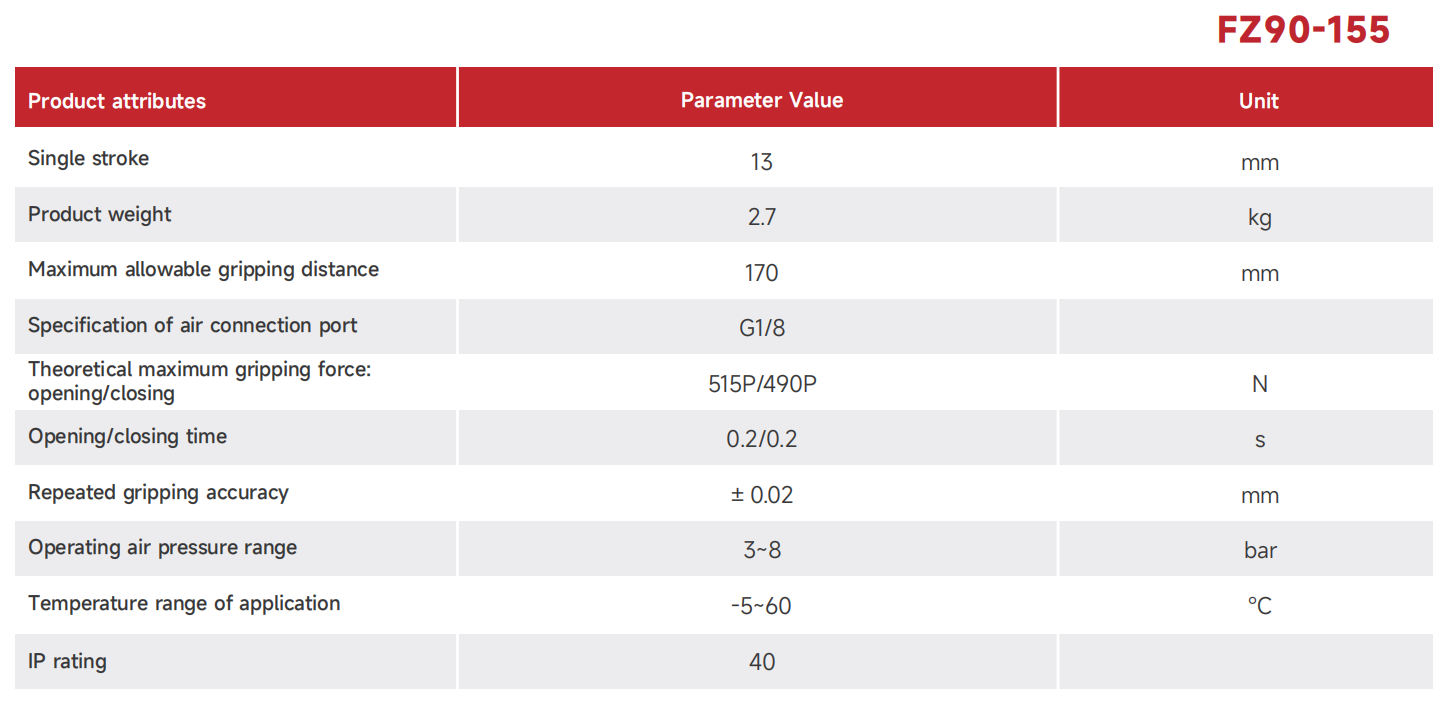

Product Parameters

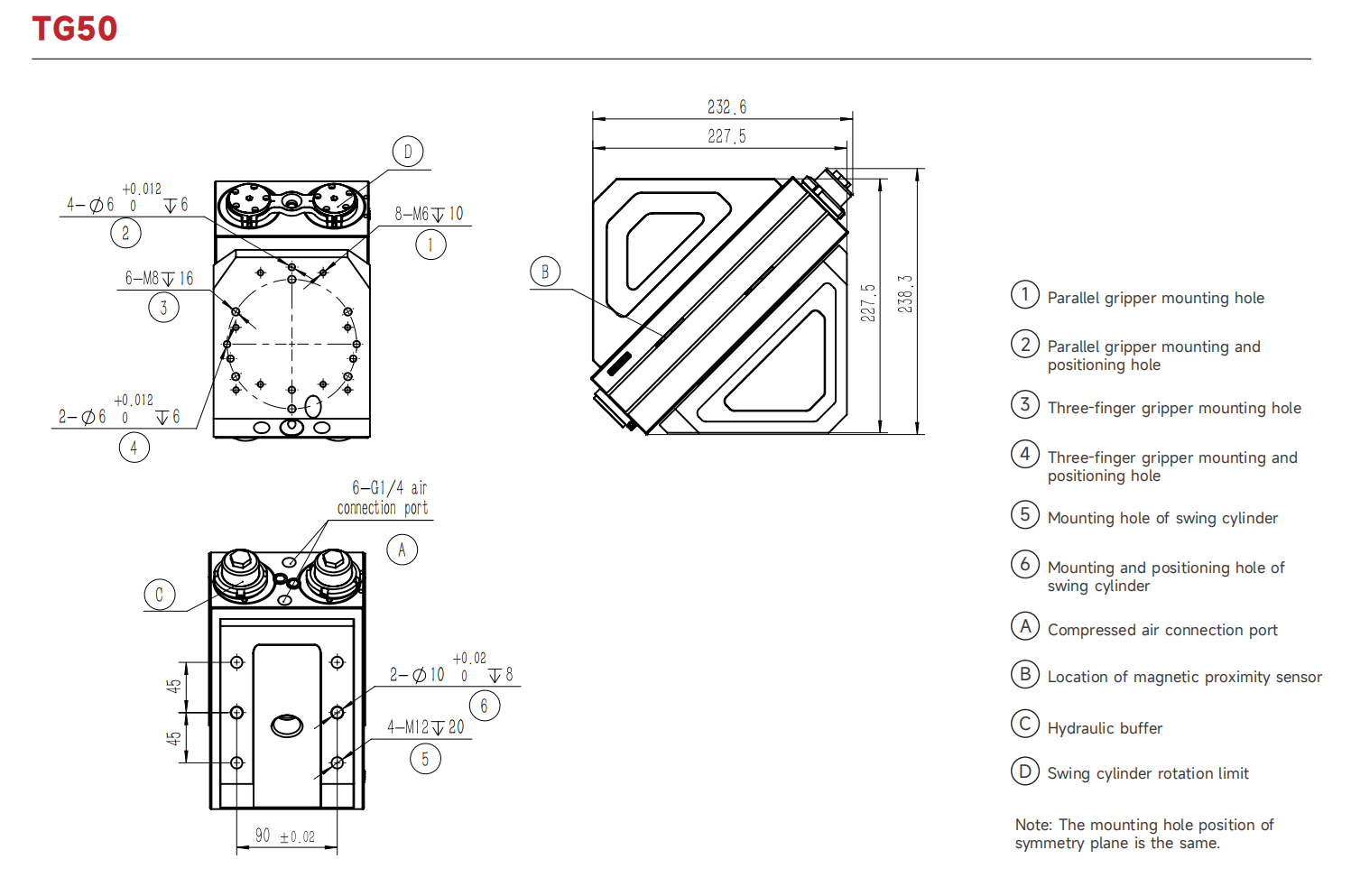

engineering graphics
