TP Series Rotary Cylinder Hard Stop Adjustment Method
November 28, 2024
FOUK
TP Series Rotary Cylinder User Guide
Demonstration Procedure
Turn off the air supply and loosen the limit clamp screw.
Rotate the tool mounting surface clockwise to the end. If there is a position error, adjust the front hard stop clockwise until the angle is correct.
Rotate the tool mounting surface counterclockwise to the end. If there is a position error, adjust the rear hard stop clockwise until the angle is correct.
Tighten the limit clamp screw to prevent loosening.
Click on the image to view the operation video
YouTube：https://youtu.be/9nlpqN5Qlrc
Important Notes

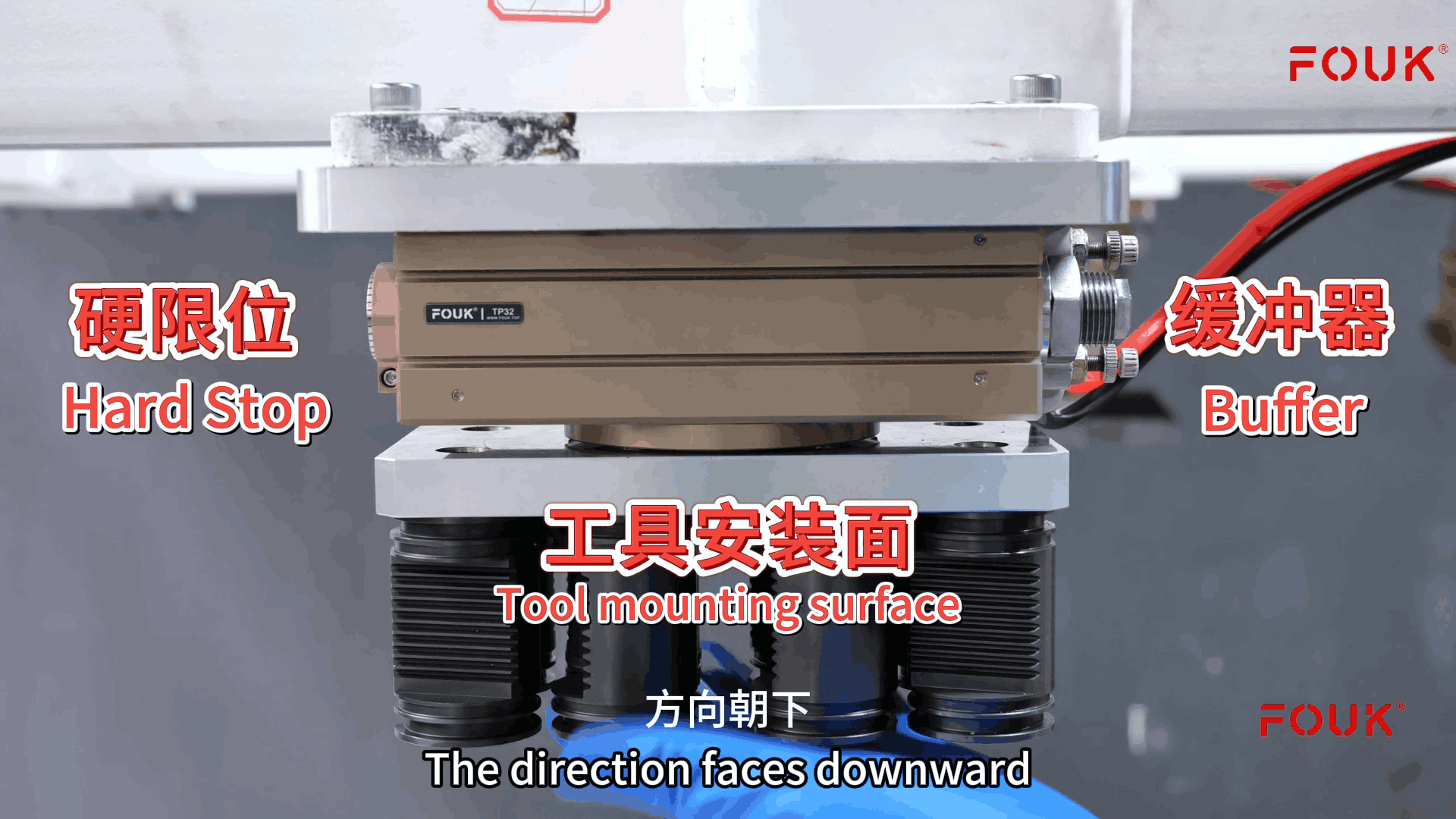

Determine your viewing direction before operating.

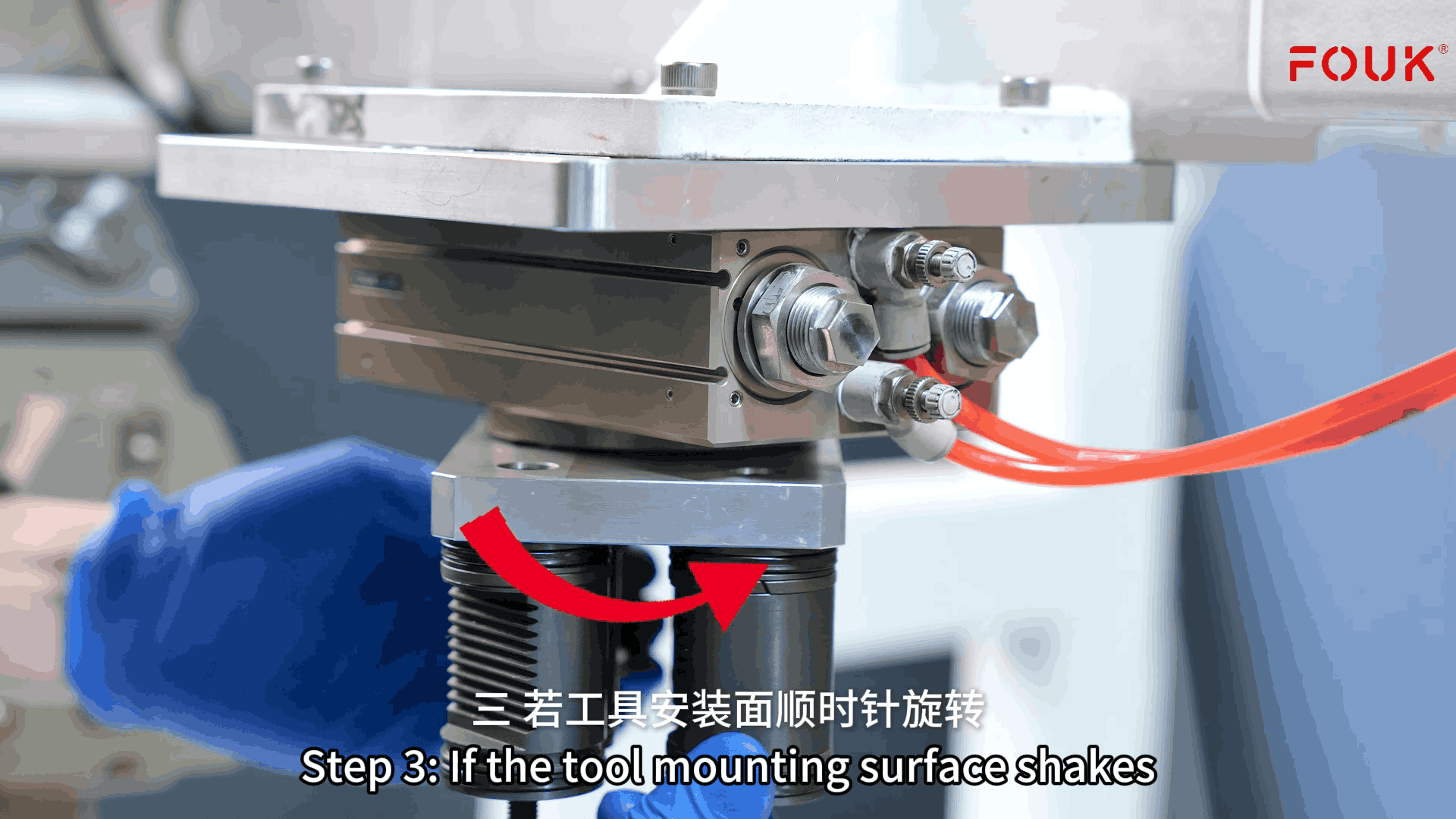

The direction shown is clockwise rotation.

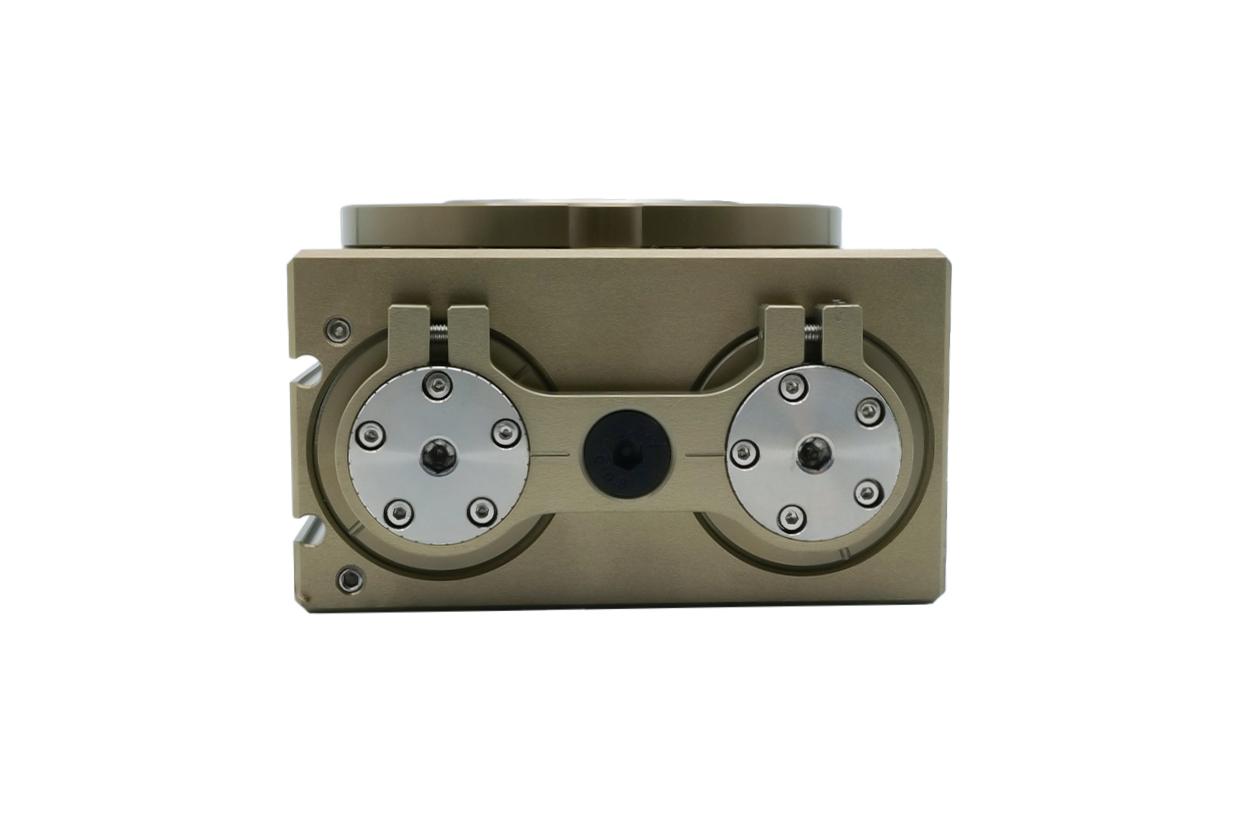

This is the front hard stop position.
