Aug. 24, 2026
In the automotive manufacturing industry, pneumatic grippers play a critical role in automated material handling processes, including stamping, die casting, machining, and final assembly.
However, automotive components vary significantly in shape, weight, surface condition, and operating environment. Many production lines select grippers based only on workpiece weight while ignoring the matching requirements between the gripper and the actual application conditions. This can lead to problems such as workpiece slipping, surface damage, premature gripper failure, reduced production efficiency, and lower product quality.
This article analyzes typical automotive handling applications based on real customer cases, evaluates workpiece characteristics from multiple dimensions, and provides optimized gripping solutions. By using FOUK's complete range of pneumatic grippers as examples, this article introduces a practical gripper selection method and verifies the selection through standard gripping force calculations.
1. Comprehensive Analysis of Typical Automotive Handling Workpieces
Based on practical automotive automation applications, three representative types of workpieces are analyzed, covering production processes from stamping workshops to final assembly lines.
The analysis focuses on four key factors:
Workpiece shape
Workpiece weight
Surface condition
Operating environment
Understanding these factors is essential for selecting the correct pneumatic gripper for automotive parts handling.
Aluminum alloy wheels are typical disc-shaped components with regular geometry.
Their main characteristics include:
Diameter: 380–550 mm
Weight per piece: 8–22 kg
Surface treatment: Polishing or coating
Surface requirement: Extremely high appearance quality, with no scratches or impact marks allowed
The application environment is usually located in machining or painting workshops. The working conditions may include:
Cutting fluid contamination
Paint mist
High-temperature areas near drying ovens (above 60°C)
Production cycle requirements are typically 2–3 loading and unloading cycles per minute.
Engine blocks and cylinder heads are complex cast iron or aluminum alloy components with irregular shapes.
Their characteristics include:
Weight per piece: 15–60 kg
Complex surfaces with cooling ribs, positioning holes, and casting residues
Sharp edges
Remaining cutting fluid and metal chips
These components are usually handled in machining workshops where:
Emulsion coolant is present
Metal dust concentration is high
Production lines operate continuously for 24 hours
Therefore, gripper reliability and service life are critical requirements.
Drive shafts and half shafts are precision shaft components with high machining accuracy requirements.
Their characteristics include:
Diameter: 30–120 mm
Length: 300–1200 mm
Weight per piece: 5–35 kg
Surface treatment: Hardening and grinding
Surface roughness: Ra ≤ 0.8 μm
Concentricity tolerance: ≤ 0.02 mm
During handling, the precision-machined shaft journal surface must not be damaged.
The application environment is usually CNC machining loading and unloading stations, where:
Cutting fluid is present
Fine metal chips exist
Daily loading and unloading cycles can reach thousands of operations
Different automotive components require different gripping solutions. Selecting the correct gripping method ensures both stable handling and protection of the workpiece surface.
Improper gripper selection may result in production losses caused by damaged or incorrectly positioned components.
The optimal gripping method for aluminum alloy wheels is:
Three-finger centering and surrounding gripping
Recommended gripper finger design:
Arc-shaped conformal fingers
Soft polyurethane pads at contact areas
The three-finger synchronous centering structure automatically aligns with the wheel center hole, ensuring:
Repeatable positioning accuracy within 0.05 mm
Fast positioning for subsequent machining operations
The large-area arc-shaped soft pads distribute gripping force evenly, completely preventing pressure marks on high-gloss wheel surfaces.
Compared with conventional two-finger parallel gripping, this solution avoids:
Wheel eccentric positioning
Excessive machining positioning errors
Surface damage caused by concentrated gripping force
The optimal gripping method for engine blocks and cylinder heads is:
Heavy-duty two-finger parallel gripping
Recommended finger design:
Positioning pins matched with workpiece locating holes
High-hardness wear-resistant steel contact surfaces
The positioning pins provide rapid rough positioning and prevent workpiece movement during transportation.
This solution is especially suitable for heavy automotive components requiring high reliability in machining environments.
The optimal gripping method for shaft components is:
Two-finger parallel gripping with 90° V-shaped grooves
Recommended finger design:
V-groove contact structure
Copper alloy inserts on contact surfaces
The V-shaped groove automatically centers shaft components and ensures:
Shaft concentricity error ≤ 0.03 mm after gripping
Accurate positioning for CNC machining loading and unloading
The copper alloy inserts prevent scratches on precision-machined shaft surfaces, protecting subsequent dynamic balancing accuracy.
Using conventional flat gripping fingers may cause:
Shaft rolling
Slipping during handling
Surface damage to shaft journals
Based on FOUK's complete pneumatic gripper product portfolio, suitable models have been developed and validated for the three automotive applications above.
These solutions can replace imported grippers while significantly reducing purchasing and maintenance costs.
For aluminum alloy wheels, the recommended solution is:

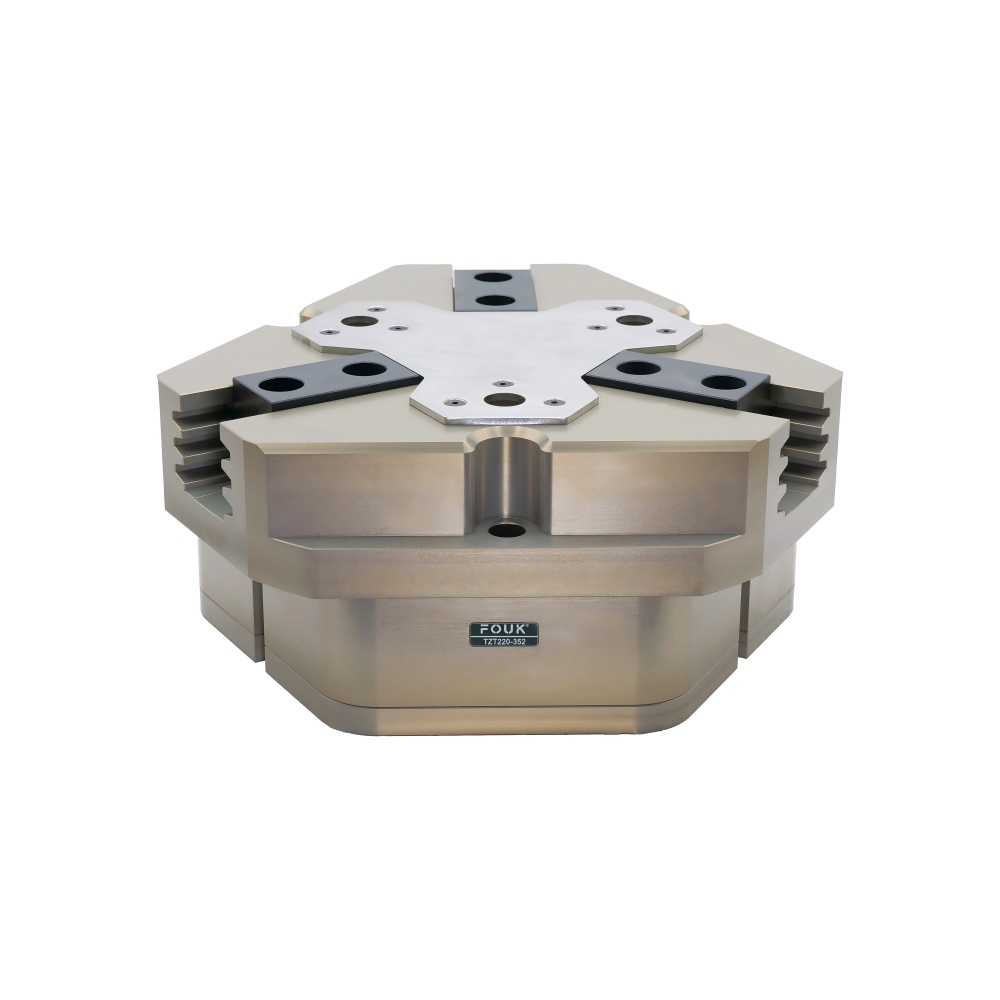

FOUK FZ Series Three-Finger Pneumatic Gripper
Key advantages:
Three fingers move synchronously with automatic centering
Repeat positioning accuracy: ±0.03 mm
Maximum theoretical gripping force: 5800 N
This model fully meets the handling requirements of 8–22 kg aluminum wheels and has already been widely applied in automated production lines at multiple automotive wheel factories.
For engine blocks and cylinder heads, the recommended solution is:
FOUK FR Series Two-Finger Self-Locking Heavy-Duty Parallel Gripper
Key advantages:
Equipped with opening self-locking mechanism
Maintains gripping force even during sudden air supply failure
Eliminates safety risks caused by heavy workpiece dropping
Maximum gripping capacity:
Up to 90 kg
The gripper fully meets engine block handling requirements and can be equipped with a fully enclosed dust-proof structure for harsh machining environments.
For drive shafts and half shafts, the recommended solution is:
FOUK FR Series Two-Finger Parallel Pneumatic Gripper
Key advantages:
High structural strength
Reinforced guiding mechanism
Excellent impact resistance
Customized V-shaped copper-lined gripping fingers
The solution does not damage precision-machined shaft journals and has been successfully applied in automotive shaft CNC loading and unloading production lines.
To verify the selection method, a common automotive application is analyzed:

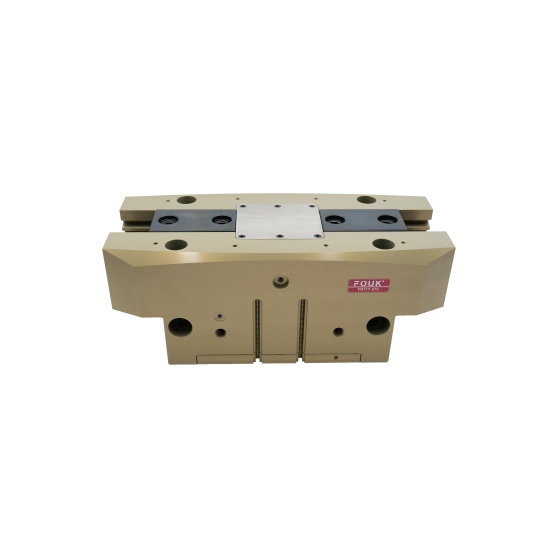

20 kg engine cylinder head handling using FOUK FR117-270 pneumatic gripper
Basic parameters:
Cylinder diameter: 117 mm
Standard air pressure: 0.5 MPa
Maximum theoretical closing gripping force: 4250 N
Application conditions:
Workpiece weight: 20 kg
Robot maximum acceleration during high-speed handling: 2g
Workpiece surface: Rough cast iron
Friction coefficient between finger and workpiece: 0.3
Safety factor: 2
The required gripping force formula:
Minimum required gripping force = (Workpiece weight × Gravity acceleration × Safety factor × Acceleration) / Friction coefficient
Substituting the values:
(20 kg × 9.8 m/s² × 2 × 2) / 0.3 ≈ 2666 N
The FOUK FR117 gripper provides:
Theoretical gripping force: 4250 N at 0.65 MPa air pressure
Compared with the required gripping force:
Required force: 2666 N
Available force: 4250 N
The gripper provides sufficient safety margin and fully satisfies heavy-duty engine cylinder head handling requirements.
Even with slight fluctuations in the factory air supply, the workpiece will not slip due to insufficient gripping force.
Through a complete selection process covering:
1. Workpiece characteristic analysis
2. Gripping method selection
3. FOUK pneumatic gripper matching
4. Gripping force verification
Automotive production lines can achieve reliable handling performance while protecting workpiece quality.
With the right pneumatic gripper selection, manufacturers can improve automation efficiency, reduce downtime, and achieve more stable production performance.
