Обладая условиями для производства и разработки полного технологического процесса захватов, компания способна удовлетворить потребности в поставках и качестве различных типов захватов.
75 Filtering Results
-

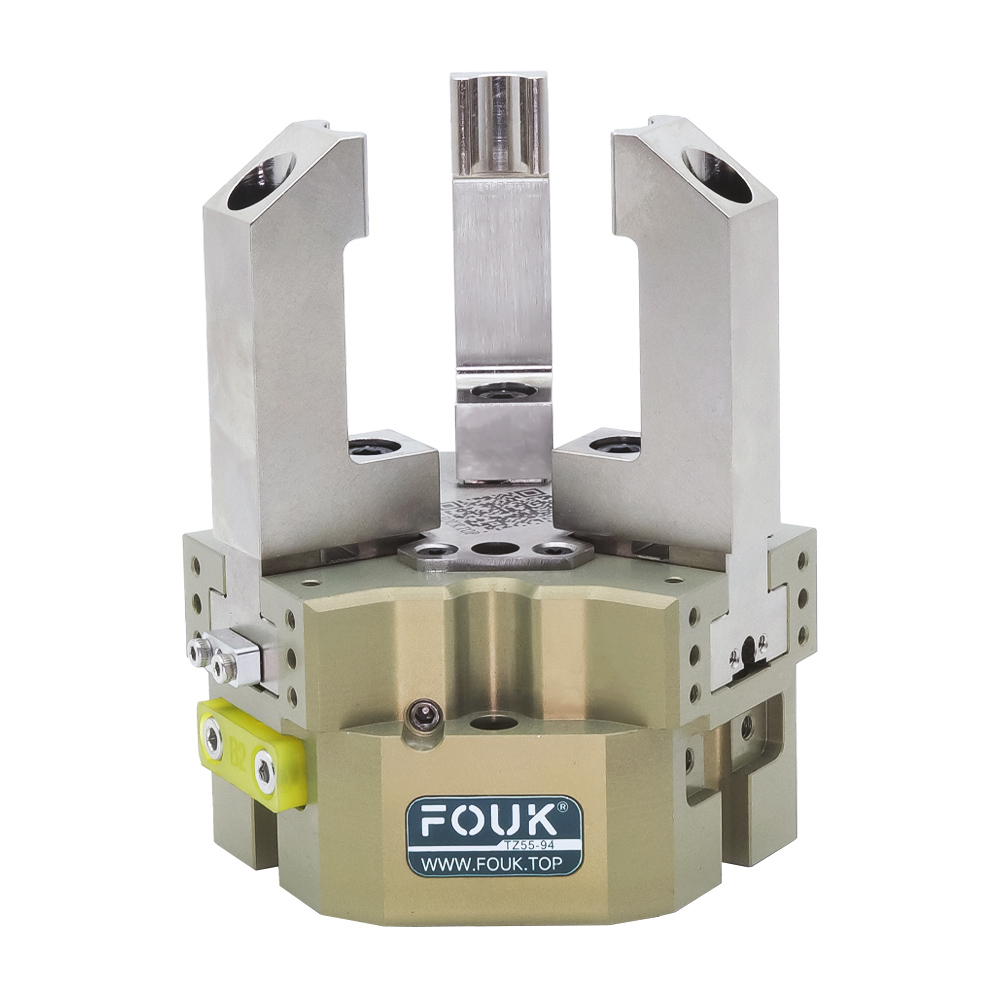

Product Code Single Stroke/mm Open Gripping Force/N Close Gripping Force /N Workpiece Weight/kg Weight/kg TZ33-60 6 72*P 66*P 1.5 0.3 TZ42-76 6 120*P 108*P 3 0.5 TZ55-94 8 200*P 186*P 5 0.85 TZ55-94-S 5.5 280*P 260*P 7 0.8 TZ75-119 10 386*P 370*P 9 1.6 TZ75-119-S 7 530*P 510*P 12 1.5 TZ95-146 13 620*P 590*P 14 2.9 TZ95-146-S 9 830*P 790*P 19 2.8 TZ125-179 16 1080*P 1030*P 25 6.8 TZ125-179-S 11 1450*P 1390*P 33 6.6 TZ160-218 18 1740*P 1680*P 45 8.8 TZ160-218-S 12.5 2300*P 2220*P 60 8.6 -

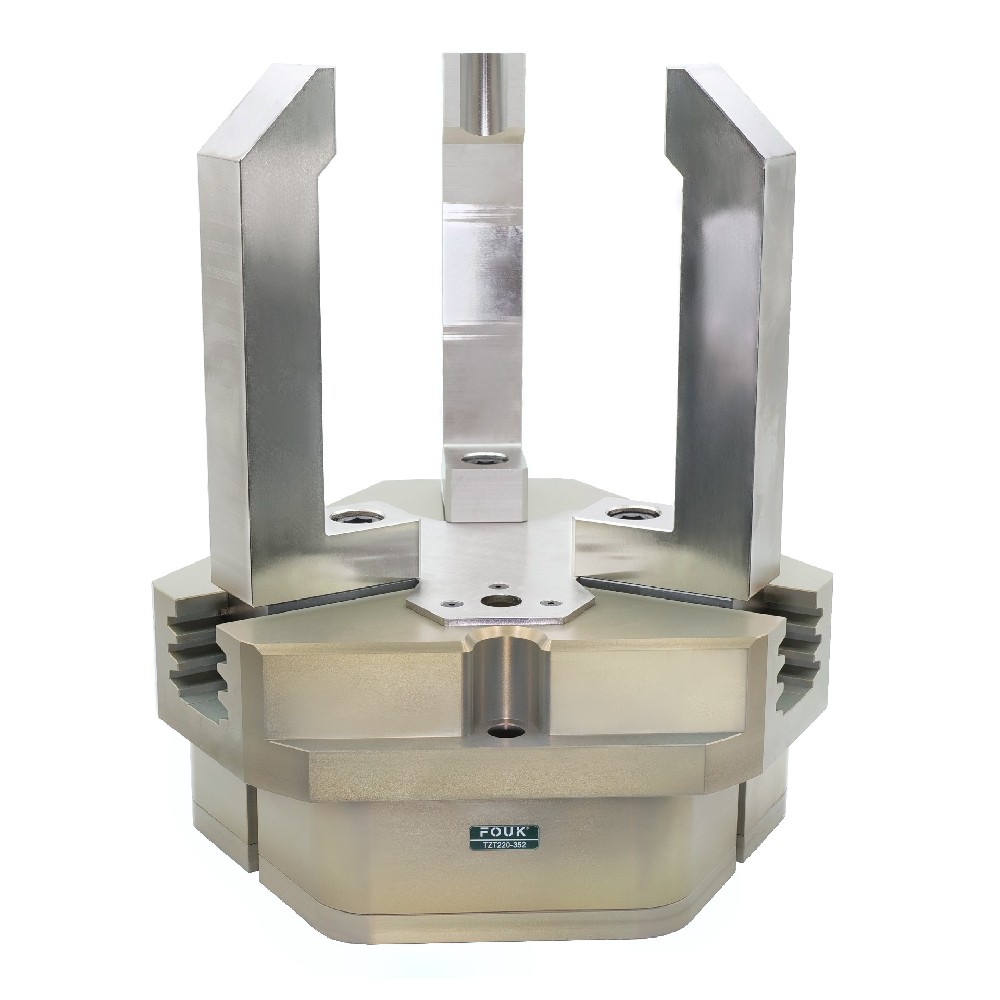

Product Code Single Stroke/mm Open Gripping Force/N Close Gripping Force /N Workpiece Weight/kg Weight/kg FZ34-68 6 76P 69P 1.7 0.35 FZ42-78 6 116P 106P 3 0.5 FZ55-100 8 198P 172P 5 0.8 FZ55-100-S 4 396P 344P 8 0.8 FZ125-200 16 1080P 1000P 30 6 FZ125-200-S 8 1960P 1830P 55 6 FZ185-292 30 1750P 1600P 50 18 FZ185-292-S 17 3470P 3280P 100 18 FZ220-352 35 2900P 2800P 80 34 FZ220-352-S 20 4500P 4340P 130 34 FZ290-430 45 4400P 4000P 130 71 FZ290-430-S 26 8000P 7700P 220 73 -

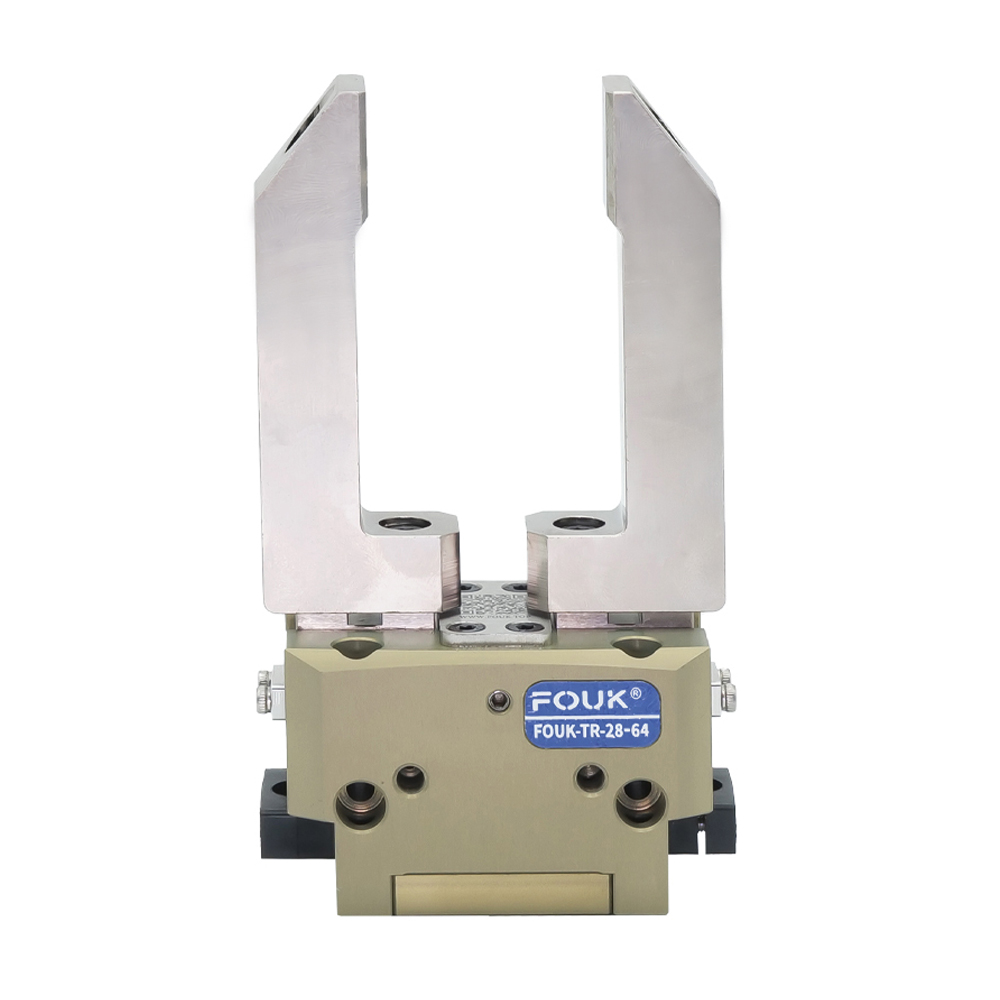

Product Code Single Stroke/mm Open Gripping Force/N Close Gripping Force /N Workpiece Weight/kg Weight/kg TR20-51 4 27*P 24*P 0.6 0.15 TR28-64 6 52*P 48*P 1.4 0.3 TR30-80 8 62*P 55*P 2.2 0.5 TR30-80-S 5.5 88*P 79*P 3 0.5 TR46-101 10 140*P 124*P 4 0.8 TR46-101-S 6.5 196*P 174*P 6 0.75 TR57-125 13 224*P 206*P 6 1.35 TR57-125-S 9 314*P 288*P 8.5 1.3 TR73-162 16 360*P 330*P 10 2.6 TR73-162-S 11 510*P 470*P 14 2.5 TR102-200 25 660*P 616*P 17 5.3 TR102-200-S 15.5 1050*P 985*P 26 5.2 TR115-240 29 834*P 790*P 25 7.6 TR115-240-S 18 1300*P 1230*P 38 7.4 TR148-300 34 1360*P 1300*P 40 15.8 TR148-300-S 21 2050*P 1950*P 60 15.6 TR181-410 45 2050*P 1950*P 75 29 TR181-410-S 28 3100*P 2950*P 105 28 -

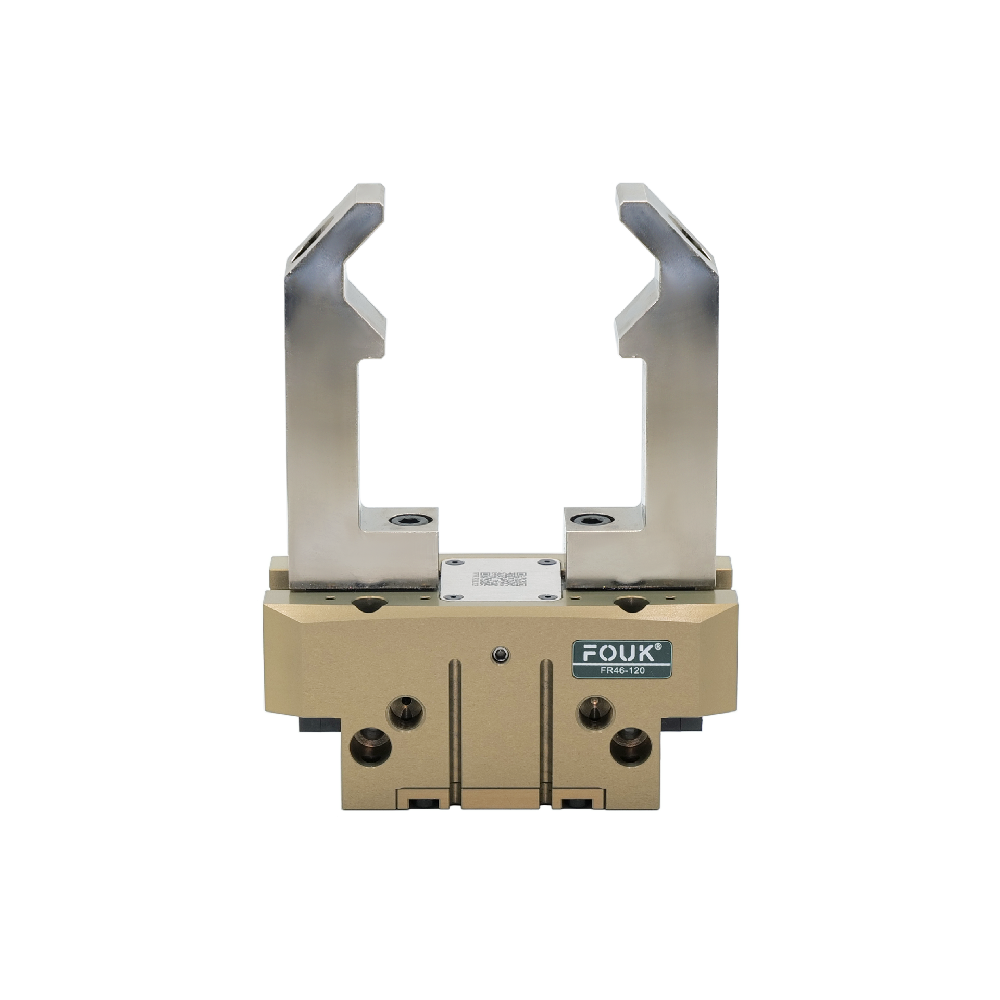

Product Code Single Stroke/mm Open Gripping Force/N Close Gripping Force /N Workpiece Weight/kg Weight/kg FR28-76 6 44P 41P 1.5 0.3 FR28-76-S 3 88P 82P 3.2 0.3 FR33-96 8 72P 65P 2.5 0.5 FR33-96-S 4 144P 130P 5 0.5 FR46-120 10 138P 124P 4 0.9 FR46-120-S 5 266P 238P 7 0.9 FR57-150 13 214P 198P 6.5 1.45 FR57-150-S 6 466P 430P 14 1.7 FR72-192 16 340P 316P 10 2.7 FR72-192-S 8 670P 6240P 20 2.7 FR99-228 25 560P 524P 20 5.4 FR99-228-S 14 965P 905P 33 5.4 FR113-265 30 706P 666P 25 7.9 FR113-265-S 17 1220P 1150P 43 7.9 FR134-318 35 990P 935P 32 13.8 FR134-318-S 20 1710P 1615P 55 13.8 FR191-525 70 1900P 1820P 90 53 -
-

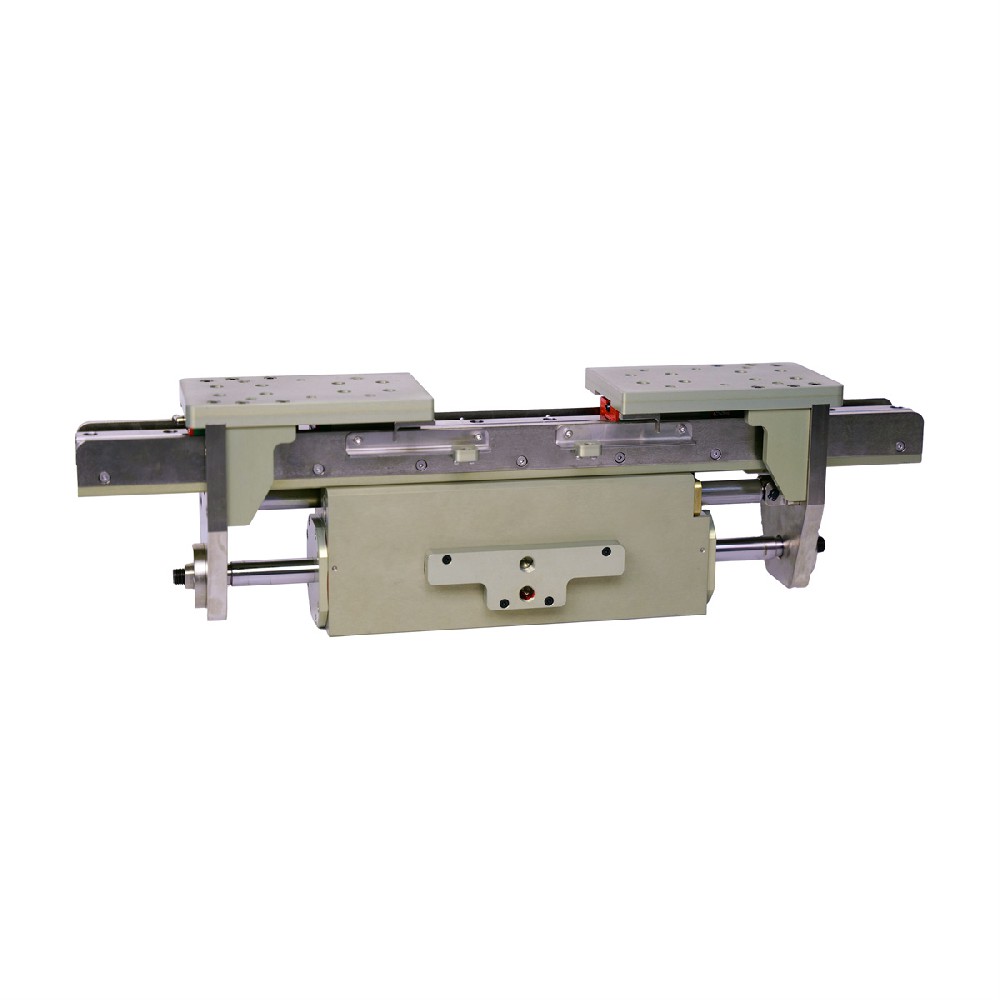

Product Code Single Stroke/mm Open Gripping Force/N Close Gripping Force /N Workpiece Weight/kg Weight/kg TJL-70-250 125 4000(при давлении воздуха 0,6 МПа) 50 TJS-150-580 105 20000(при давлении воздуха 0,65 МПа) 800 TJM-115-530 100 12000(при давлении воздуха 0,6 МПа) 300 -

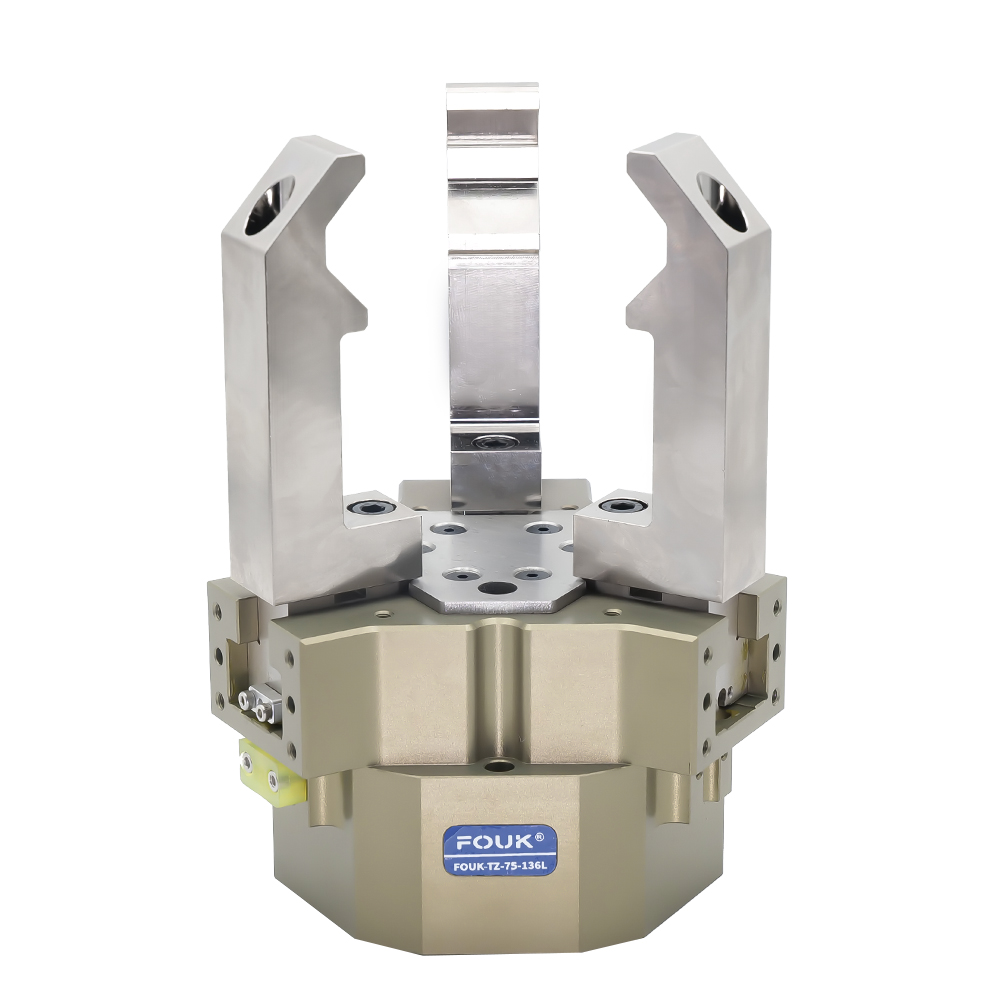

Product Code Single Stroke/mm Open Gripping Force/N Close Gripping Force /N Workpiece Weight/kg Weight/kg TZ33-74-L 8 64*P 60*P 1.2 0.35 TZ42-90-L 11 104*P 94*P 2.5 0.65 TZ55-113-L 15 180*P 168*P 4.5 1.25 TZ75-136-L 20 330*P 316*P 8 2.1 -

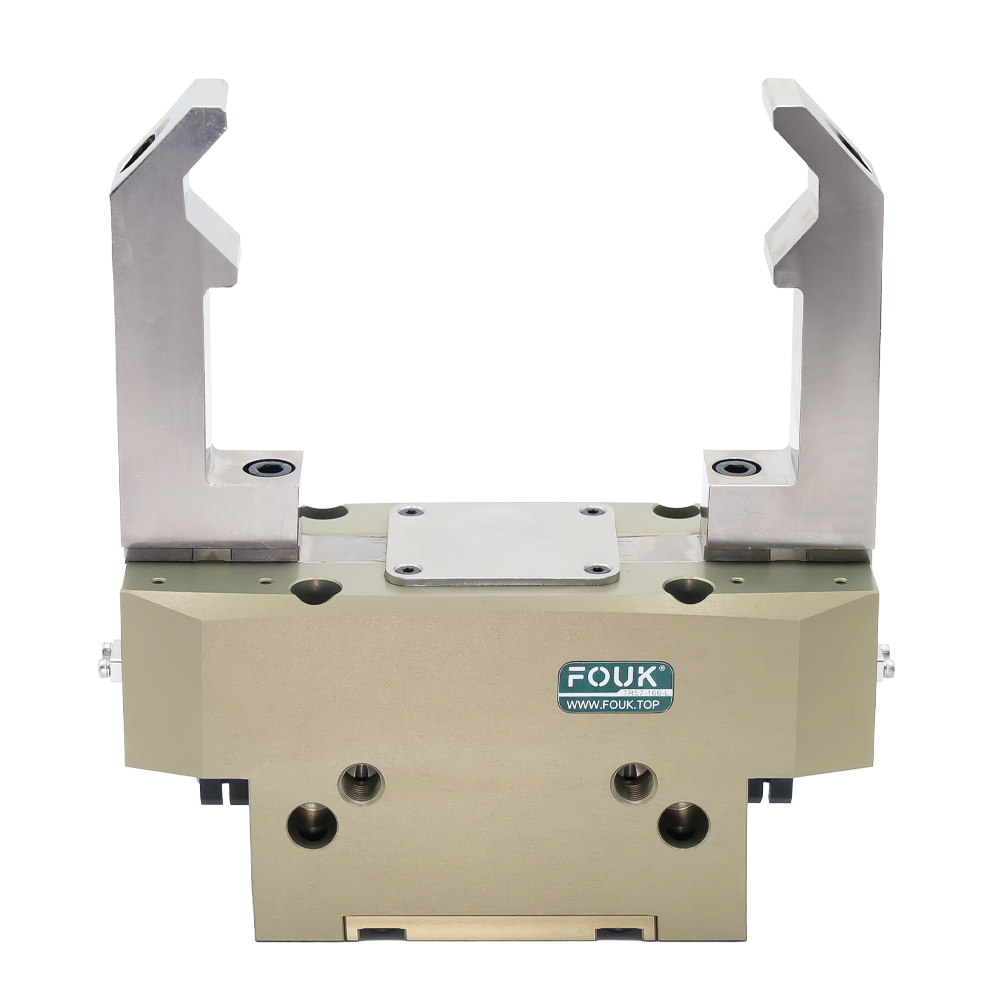

Product Code Single Stroke/mm Open Gripping Force/N Close Gripping Force /N Workpiece Weight/kg Weight/kg TR30-95-L 15 55*P 49*P 2 0.6 TR46-114-L 19 130*P 118*P 3.5 1.1 TR57-166-L 24 200*P 184*P 5.5 2.1 TR73-194-L 32 326*P 300*P 9 3.8
